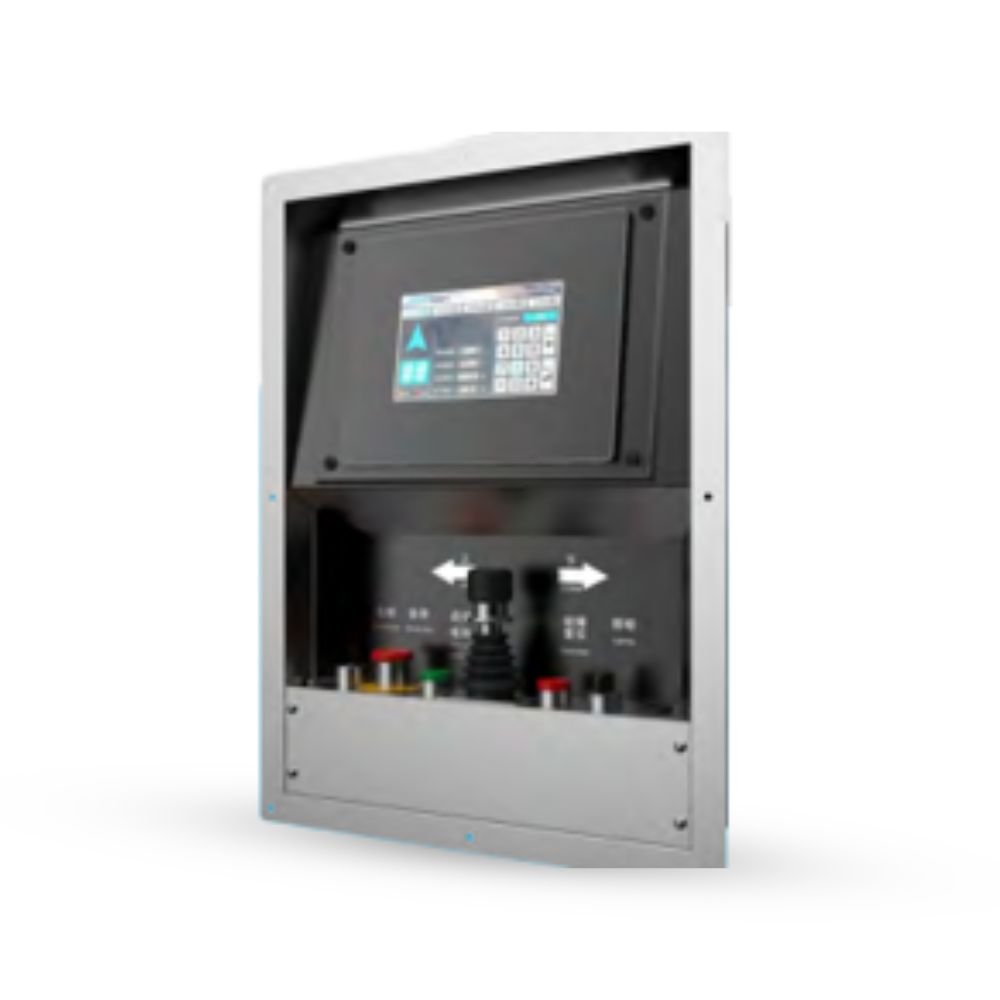

Intelligent Control Panel- 120M
- It displays the real-time location, direction of travel, and door open/close status of the hoist cage.
- Overloading, maintenance, etc.
- Voice broadcast function: Provides arrival, fault, maintenance, door opening voice prompts, and landing door announcements.
- The alarm function will be activated and other announcements will be broadcast.
- It has a “door closed” feedback signal input interface;
- Equipped with a control output port, issuing unlock or lock signals based on system status.

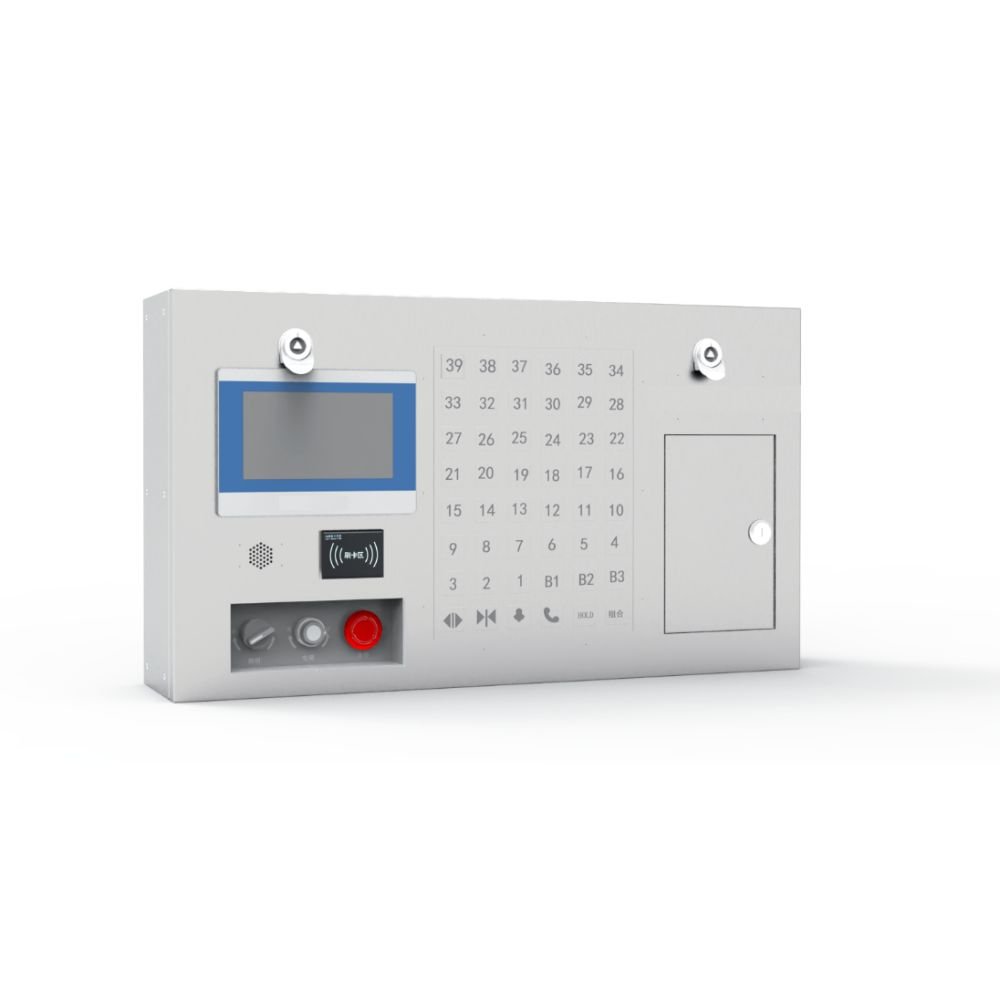

Intelligent Control Panel- 150m
- Automatic leveling control, no dedicated operator required, call button on each floor, supports
- Multiple users can select layers simultaneously, improving operational efficiency;
- The system integrates the gantry crane’s electrical control system, frequency converter’s electrical control system, and electrical control box into a single integrated design.
- IPX3 protection rating, and conforms to modern aesthetics and ergonomics;
- Wireless digital high-definition surveillance video, with clear and smooth images;
- The cage is equipped with a people recognition camera, which has a precise detection range and a sensitive real-time response monitor.
- Variable frequency drive integrated unit: features human voice prompts and provides customizable start-up, fault, and other functions.
- The system includes voice prompts and other functions; it also features a hovering function, which can prevent [unclear – possibly referring to a specific problem or issue] in closed-loop mode.
- To prevent the cage from falling.
- Optimized structure, compatible with industry-standard cage structure designs, easy to install and maintain.
- Wireless long-distance control, easy installation, and convenient maintenance and debugging;
- Optional features include IoT functionality, remote monitoring and positioning, and remote power on/off control.

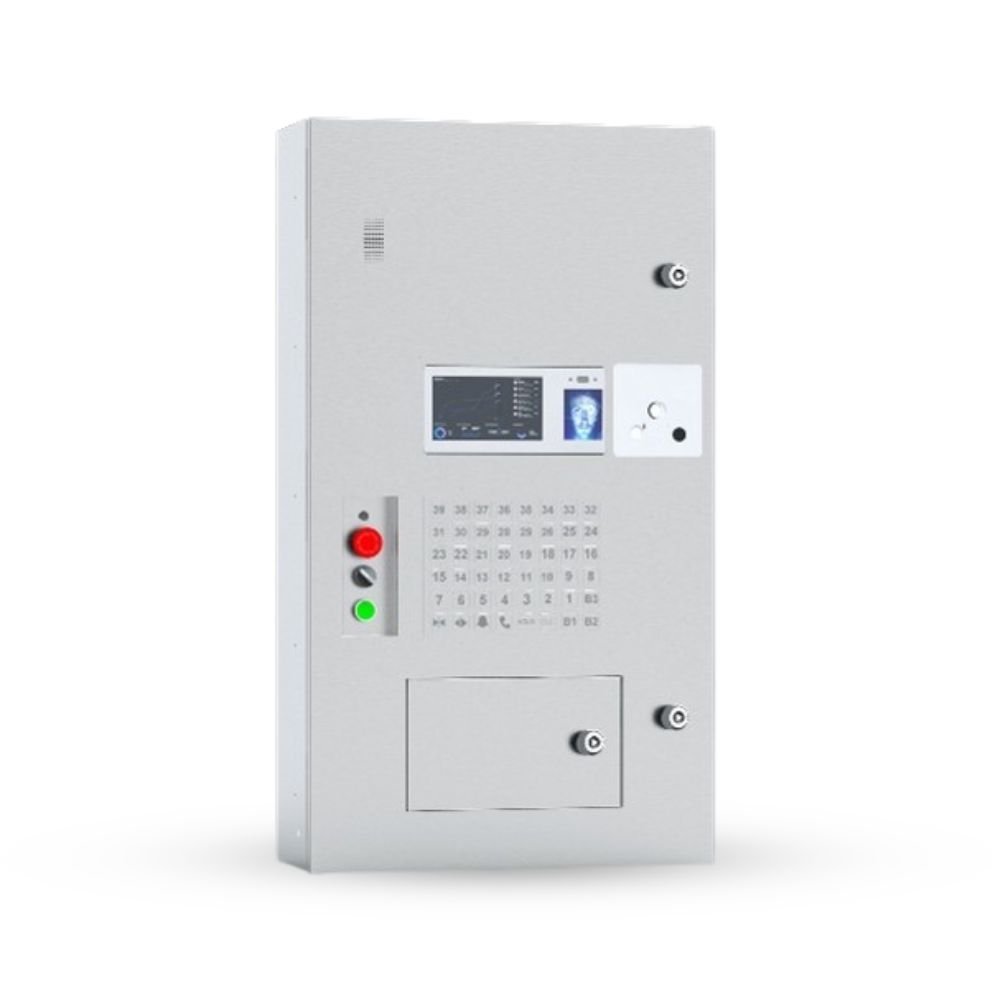

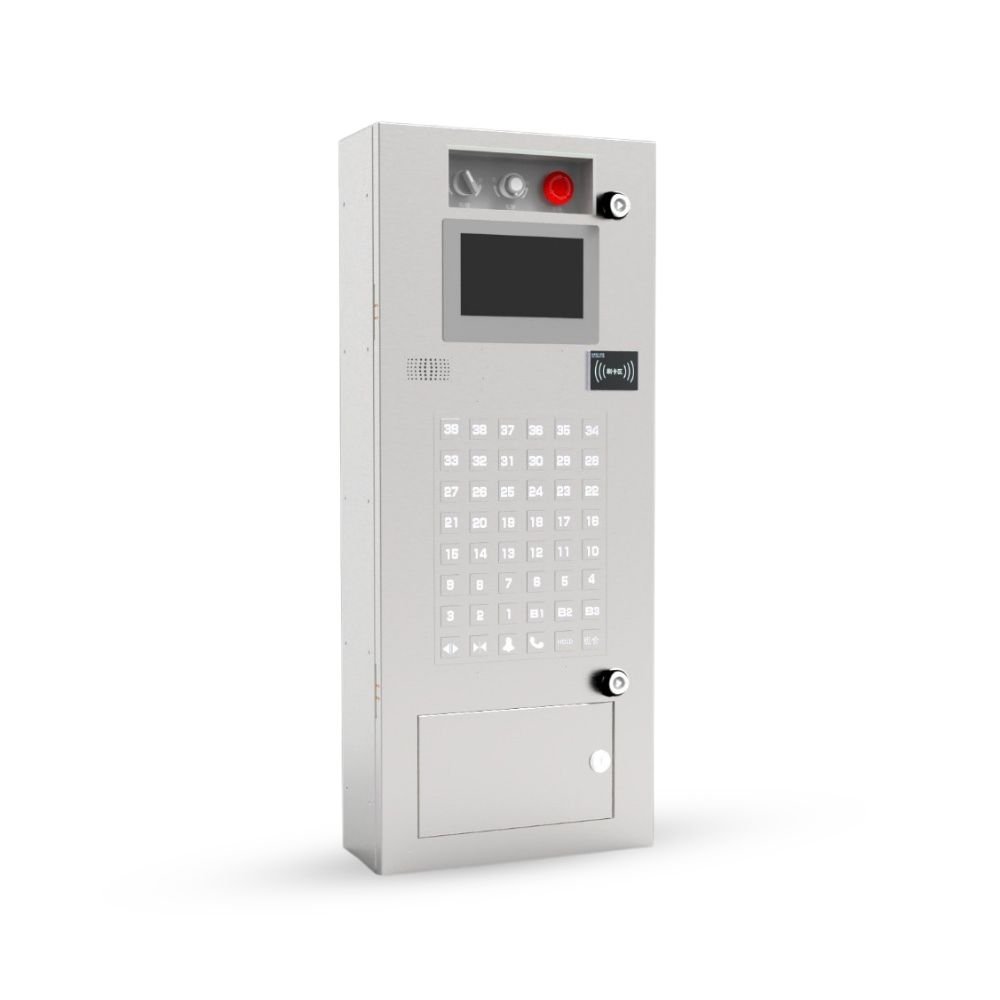

Intelligent Control Panel 350M
- Automatic leveling control, no dedicated personnel required, each floor is equipped with a call button, supports multiple people to select floors simultaneously, and improves operating efficiency;
- The integrated design of the gantry crane’s electrical control system, frequency converter’s electrical control system, and electrical box, with an IPX3 protection rating , conforms to modern aesthetics and ergonomics;
- Wireless digital high-definition surveillance video, clear and smooth picture;
- The cage is equipped with a people recognition camera, which has a precise detection range, sensitive response, and real-time monitoring.
- Variable frequency drive integrated unit: equipped with human voice prompts, providing customizable voice functions such as power-on, fault, and prompts;
- Optimized structure, compatible with industry-standard cage structure designs, easy to install and simple to maintain;
- Wireless long-distance control, easy installation, convenient maintenance and debugging; optional IoT function, remote monitoring and positioning, and remote power on / off control.

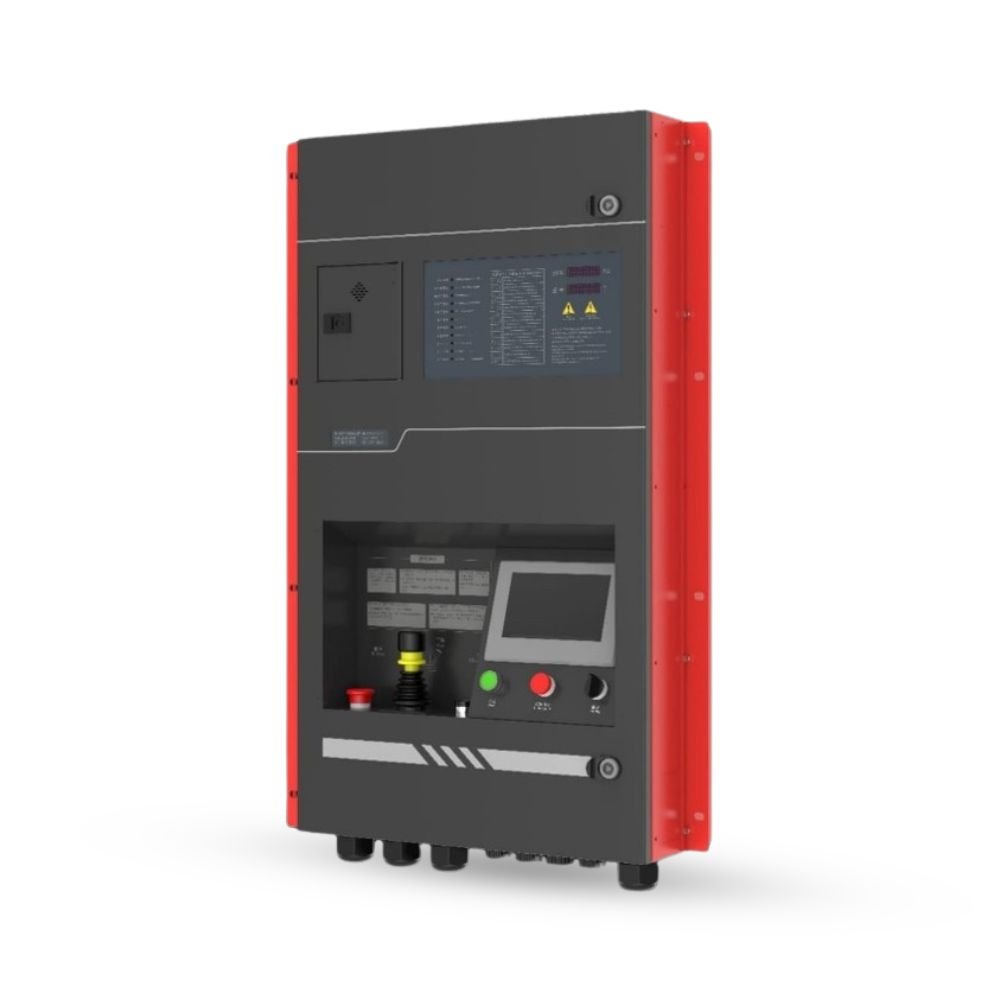

VFD Integrated control panel
construction elevator integrated special machine is a special model specially developed for the series of construction elevators without a cab.
It integrates console, frequency conversion control unit, logic control unit, lifting weight limiter, etc. The products are multi-functional, beautiful in appearance, and reasonable in structure, suitable for export.
It has a built in control panel which integrates the construction elevator and control panel that the auto mode and manual mode is optional for users to choose. Because of the professional design and good performance, It is popularly used in construction lifting field.
Rated input voltage: Three-phase/380V; Rated current (A): 90A; Remarks: 13KW*3-15KW*3
Safety Device

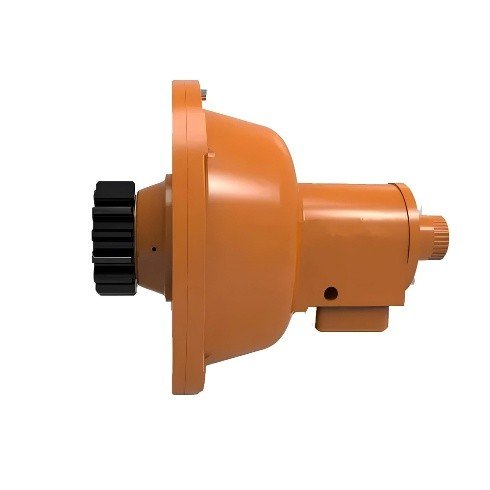

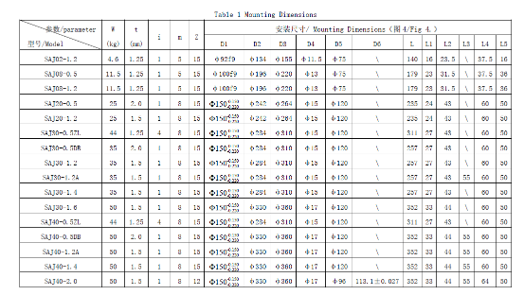

SAJ serials safety device is the most important apparatus in the pinion and rack builders’ hoist, which can prevent the cage running over speed, and reduce the cage from dropping accident effectively.

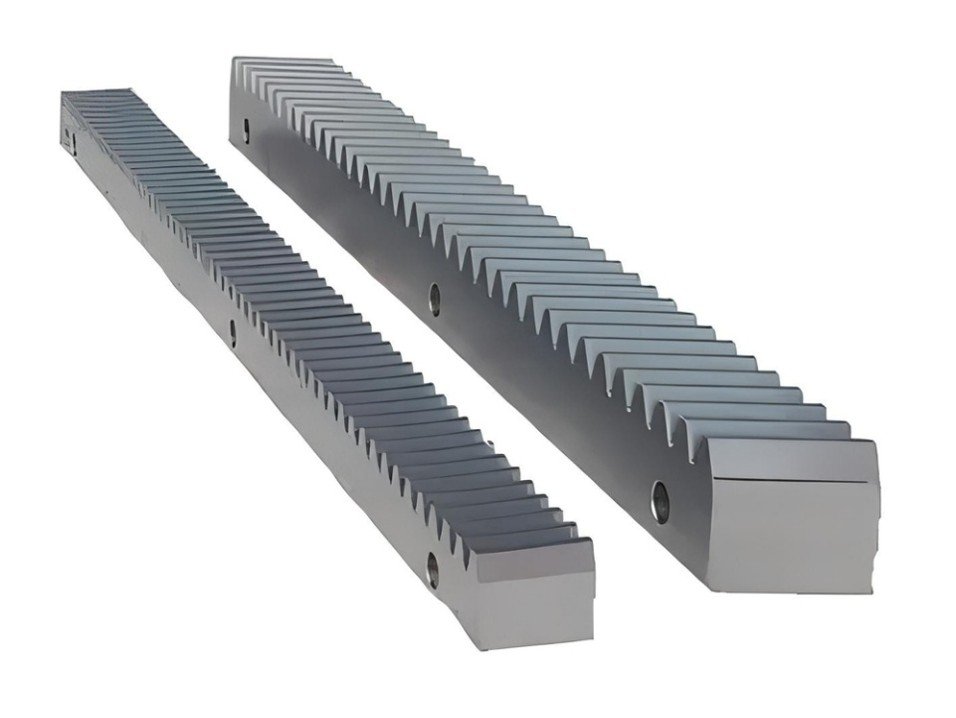

RACK
- High Load Capacity: Designed for heavy duty gantry machinery with HRC48~52 hardness.
- Precision Manufacturing: Ground gear rack with Grade 6 accuracy for smooth linear motion.
- Model: M5,M8.
- Length: 1500 mm.
- Cross-sectional area: 40*40mm, 50*50mm.
- Material:cast steel, forged steel, stainless steel, alloy steel, POM, aluminium alloy, zn alloy, bronze, brass, chrome, 40Cr, 20CrMnTi, Steel 1020, Steel 1045.
- Surface treatment: Carburizing, hardening and tempering, nitriding, high frequency treatment, black of oxidation, zincing, nickelage.
- Machine: CNC engine lathe, milling machine, drilling mchine, gear shaper, hobbing machine, grinder.

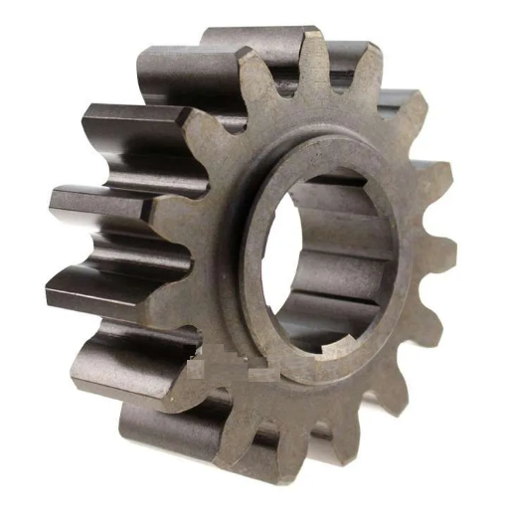

Pinion
- Material: carbon steel such as C45, 20CrMnTi, 40Cr, 42CrMo
- Heat Treatment: Hardening and Tempering, High Frequency Quenching, Carburizing Quenching.
- Standard: European or American standard
- Module M5 & M8 .
- OEM service: make based on your special sample or drawing and meet your need for high precision on teeth of gear

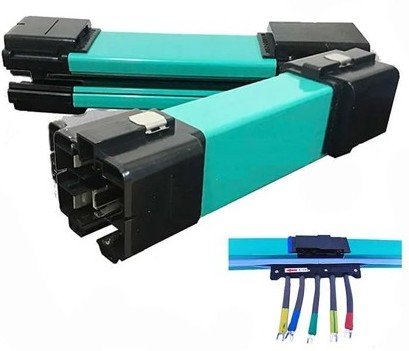

Busbar
Item | specification | ||
Conductor busbar | 16mm2 | 25mm2 | 35mm2 |
rate current (A) | 80 | 130 | 165 |
Sectional area (mm2) | 16 | 25 | 35 |
Max system voltage (V) | 690 | 690 | 690 |
Allowable ambient temperature all full load | 25 | 25 | 25 |
Length of sliding line (m) | 3.016 | 3.016 | 3.016 |
Distance between fixed pieces (m) | 3.016 | 3.016 | 3.016 |
Product composition list
- Specification: 16sqmm,25sqmm,35sqmm
- slide and slide rail iron parts
- slide rail iron support trunking
- current collector
- inlet connector
- waterproof fastener
- anti-falling pendant
- guide junction box assembly
